Helix 36

Product Details

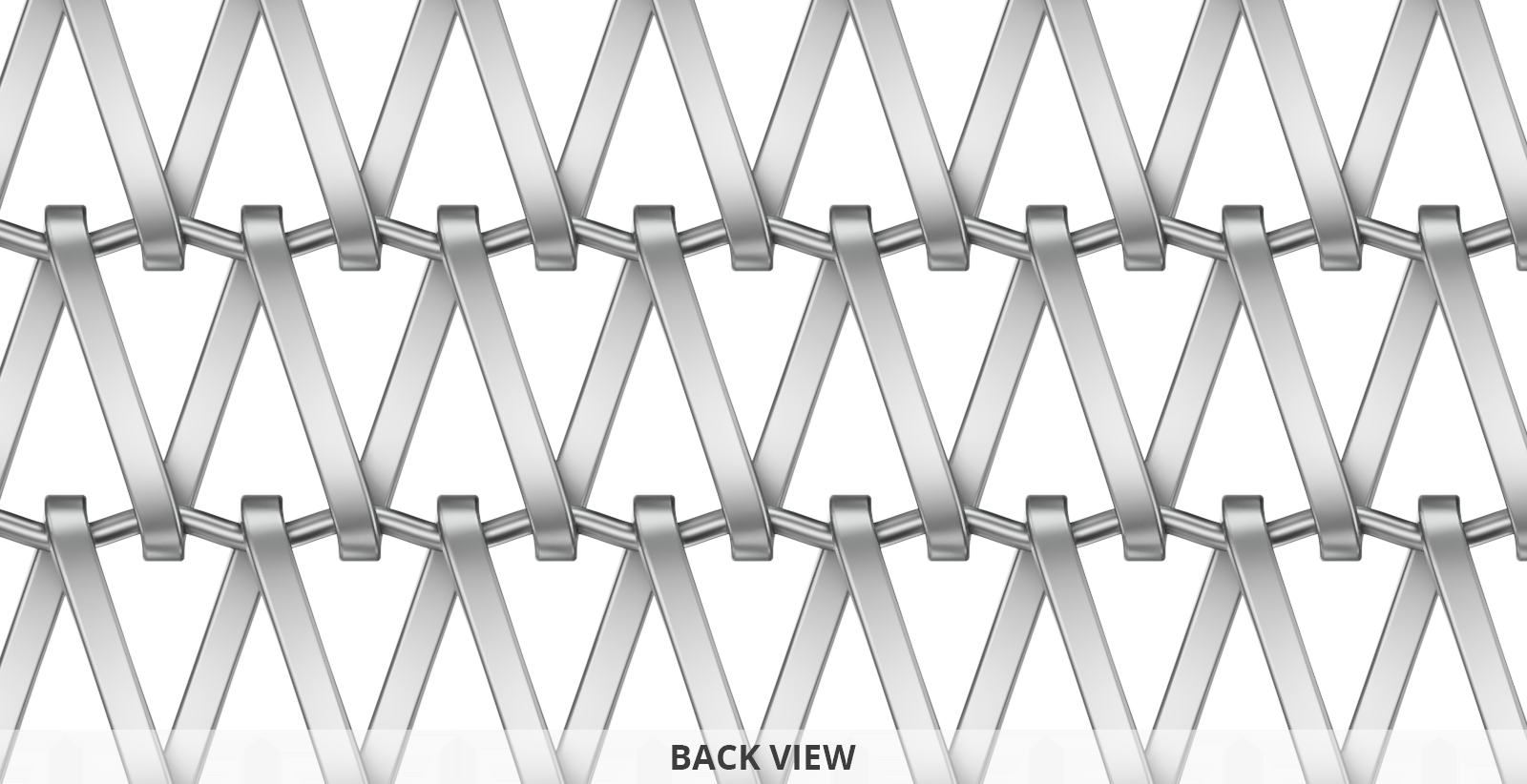

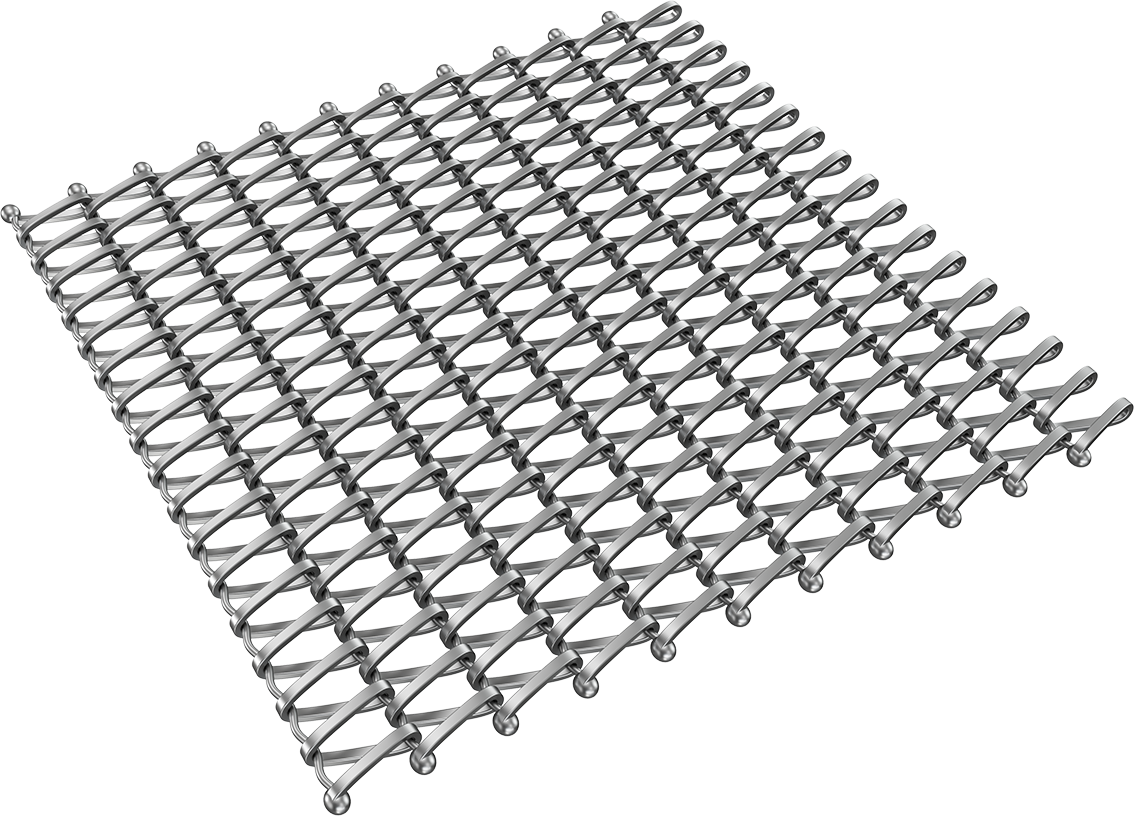

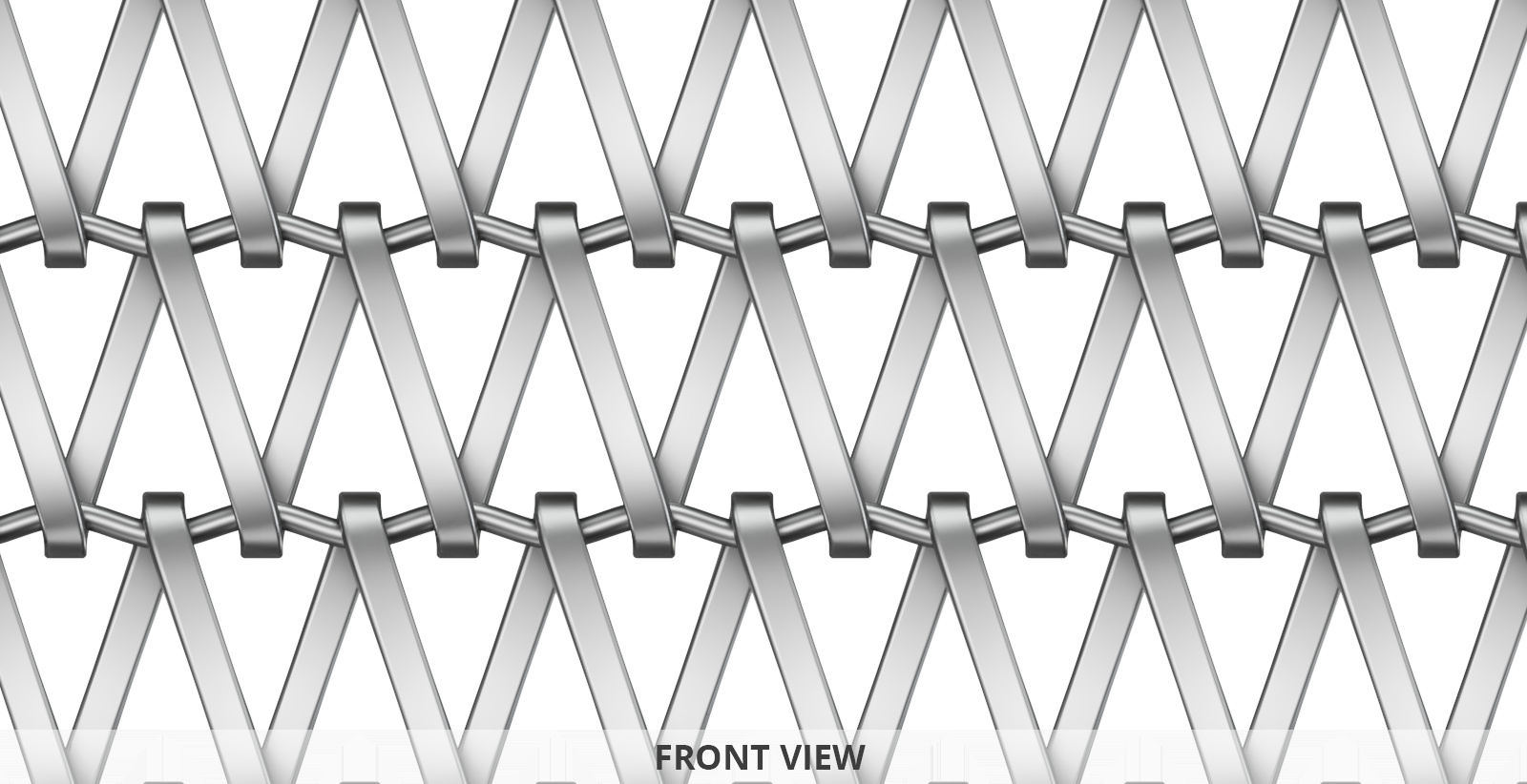

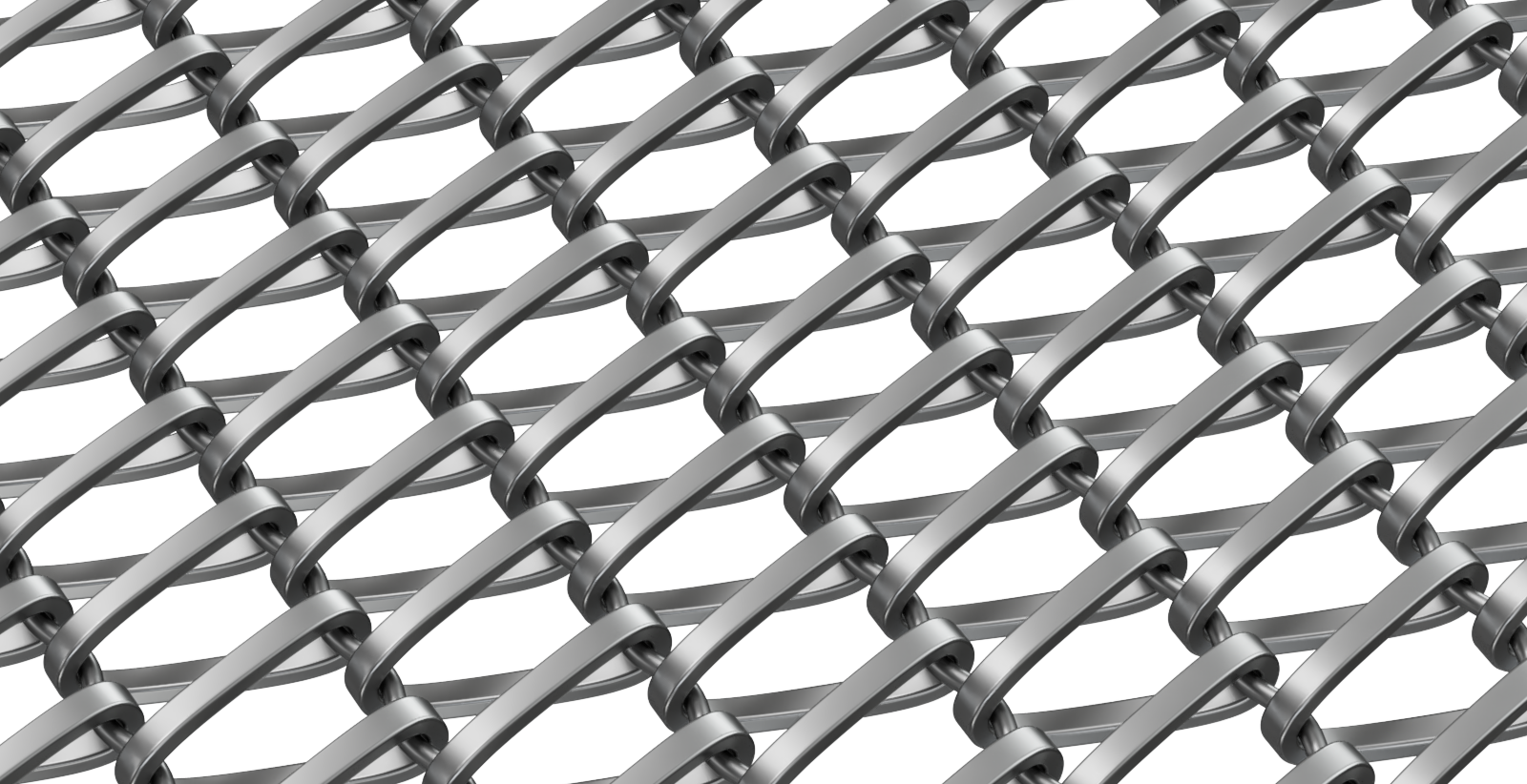

Helix features a spiraling flat wire hinged around a crimped connector wire allowing for flexibility in the length direction. The Helix series varies in wire diameter and mesh opening.

Material: Bronze Stainless Steel

*confirm availability for different alloys, colors, and textures

Type:

Flexible - Flexible cable fabrics are woven of precision wire cable in the warp (vertical) direction and a solid wire in the weft (horizontal) direction giving flexibility to the fabric in one direction.

Multi-Flex - Select fabrics are flexible in both the warp and weft direction.

Rigid - Woven of solid wires in both the warp and weft directions for a stiff fabric in all directions.

Flexible

Max Width: 20'

Download: Data Sheet

Applications: Partitions, Fall Protection, Partitions, Steelweave, Facades, Ceilings

COLOR AND SURFACE OPTIONS Contact Us
